Kinetics and Kinematics Problem Solving in Sports

Worked Example: Swimmer Acceleration A swimmer increases their velocity from $1.7 \text{ m/s}$ to $2.9 \text{ m/s}$ in $0.5 \text{ seconds}$. What is their average acceleration?

1. Identify variables: $v_i = 1.7 \text{ m/s}$, $v_f = 2.9 \text{ m/s}$, $\Delta t = 0.5 \text{ s}$.
2. Apply formula: $a = \frac{2.9 - 1.7}{0.5}$ $a = \frac{1.2}{0.5} = 2.4 \text{ m/s}^2$

Angular Kinematics: Rotational Motion

Not all athletic movement is linear. Many movements, such as a tennis serve or a gymnast's rotation, involve angular kinematics, where the body rotates around a center point.

Angular Velocity and Acceleration

Angular velocity ($\omega$) describes the rate of rotation, typically measured in degrees per second (deg/s) or radians per second (rad/s). Angular acceleration ($\alpha$) is the change in angular velocity over time.

$\omega = \frac{\Delta \theta}{\Delta t}$

$\alpha = \frac{\omega_f - \omega_i}{\Delta t}$

Worked Example: Racquet Velocity A tennis athlete accelerates her initial racquet velocity of $300 \text{ deg/s}$ by $100 \text{ deg/s}^2$ for $0.03 \text{ seconds}$. What is her new racquet velocity?

1. Identify variables: $\omega_i = 300 \text{ deg/s}$, $\alpha = 100 \text{ deg/s}^2$, $\Delta t = 0.03 \text{ s}$.
2. Calculate change in velocity: $\Delta \omega = \alpha \cdot \Delta t = 100 \cdot 0.03 = 3 \text{ deg/s}$.
3. Find final velocity: $\omega_f = 300 + 3 = 303 \text{ deg/s}$.

Projectile Motion and Vector Resolution

When an athlete performs a jump or a throw, they often move at an angle ($\theta$) relative to the horizontal. This is known as the takeoff angle. To solve these problems, you must use vector resolution to break the resultant velocity ($v$) into two perpendicular components: horizontal and vertical.

Decomposing the Resultant Velocity

The resultant velocity is the actual speed and direction of the athlete at the moment of takeoff. We use trigonometry to find the components:

• Horizontal Velocity ($v_x$): The speed moving forward. $v_x = v \cdot \cos(\theta)$
• Vertical Velocity ($v_y$): The speed moving upward. $v_y = v \cdot \sin(\theta)$

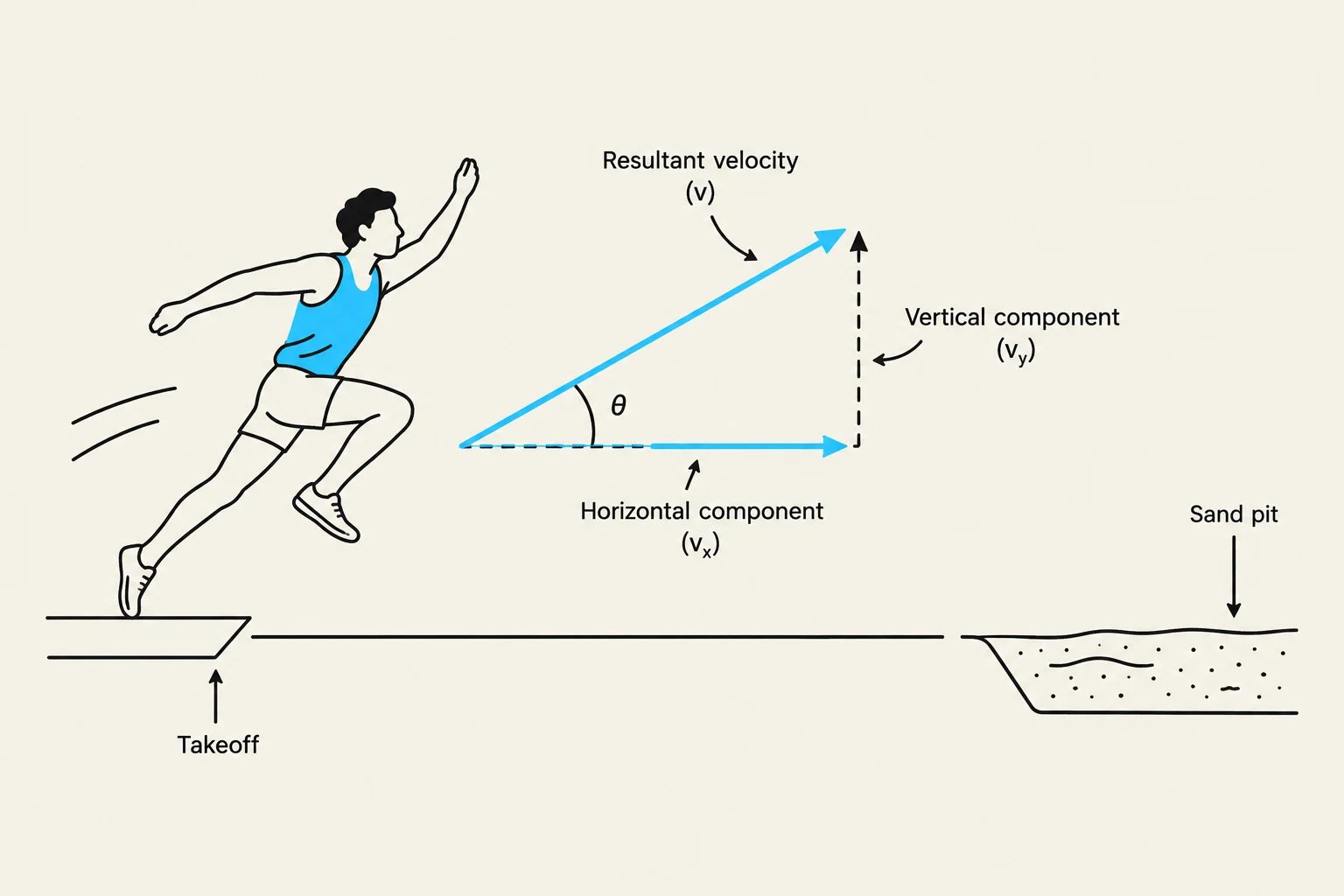

Worked Example: Long Jumper Takeoff A long jumper leaves the ground at an angle of $25^\circ$ with a resultant velocity of $9 \text{ m/s}$. Calculate the horizontal and vertical velocities.

1. Horizontal ($v_x$): $v_x = 9 \cdot \cos(25^\circ) \approx 8.16 \text{ m/s}$
2. Vertical ($v_y$): $v_y = 9 \cdot \sin(25^\circ) \approx 3.80 \text{ m/s}$

Vertical Motion and Gravity

Once the athlete is in the air, their vertical motion is governed by gravity ($g \approx 9.81 \text{ m/s}^2$). This affects their time of flight and their peak height (the maximum vertical displacement achieved).

When calculating the motion of a diver or a jumper, remember that the vertical velocity will decrease due to gravity until it reaches zero at the peak of the jump, and then increase as they descend.

Summary of Problem-Solving Steps for Vectors

When faced with complex problems involving multiple directions (such as forces or velocities), follow these steps to ensure accuracy:

1. Break down all vectors into their $x$ (horizontal) and $y$ (vertical) components.
2. Summate all $x$ components and all $y$ components separately.
3. Solve for the resultant vector using the sum of the components.

By mastering these kinematic and kinetic relationships, you can quantitatively analyze athletic performance and understand the physical limits of human movement.
