Understanding Projectile Motion: Velocity Components and Trajectory

The Role of Gravitational Acceleration

The primary force acting on a projectile is gravitational acceleration ($g$), which acts exclusively in the downward (vertical) direction. On Earth, this value is approximately $9.8 \text{ m/s}^2$.

As the projectile rises, gravity pulls against the upward vertical velocity, slowing it down until it reaches zero at the very peak of the path. Once the object begins to fall, gravity accelerates it downward, increasing its vertical speed in the negative direction. This constant acceleration is why the vertical motion follows the standard kinematic equations for constant acceleration:

$v_y = v_{yi} - gt$ $y = y_i + v_{yi}t - \frac{1}{2}gt^2$

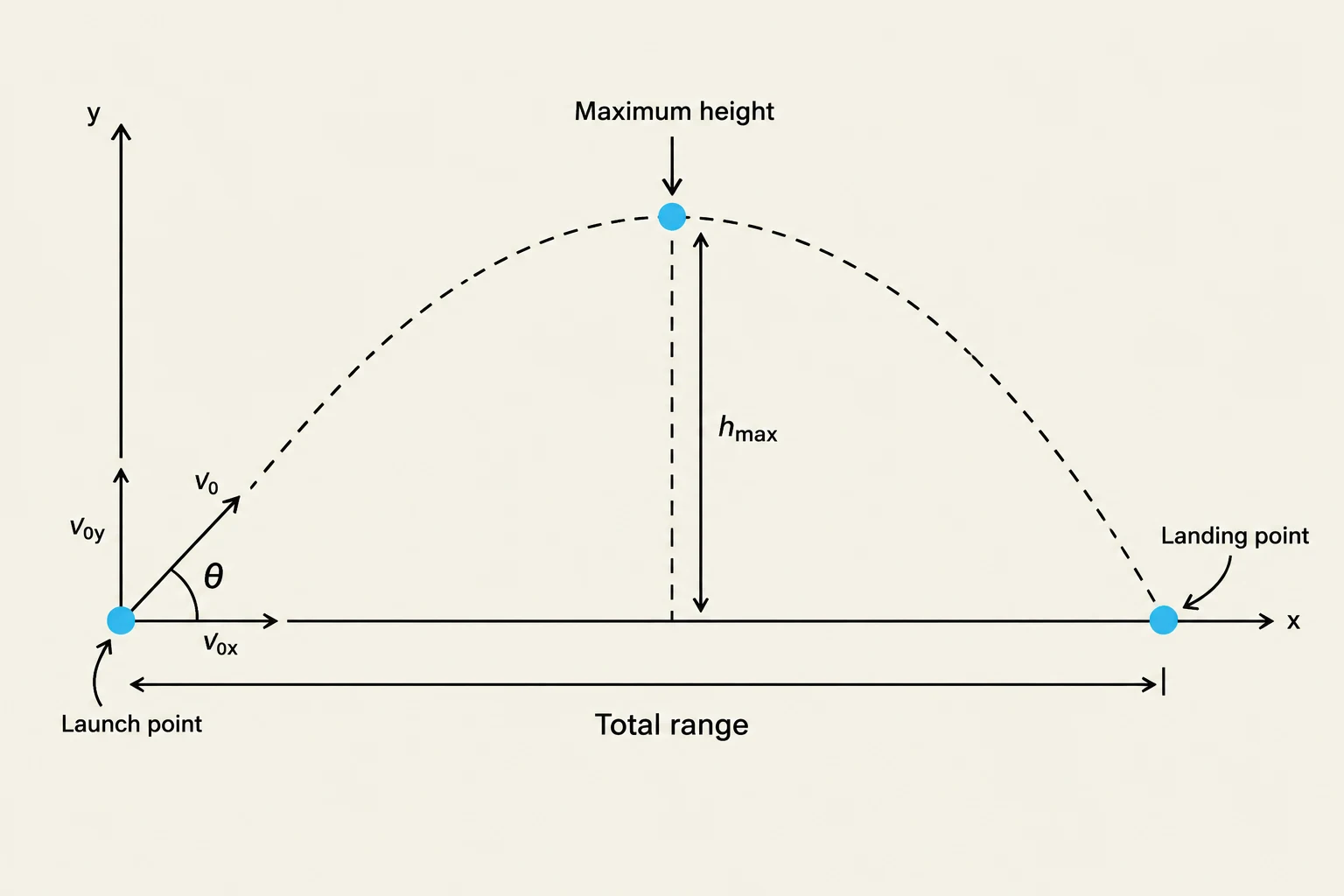

Analyzing Key Trajectory Milestones

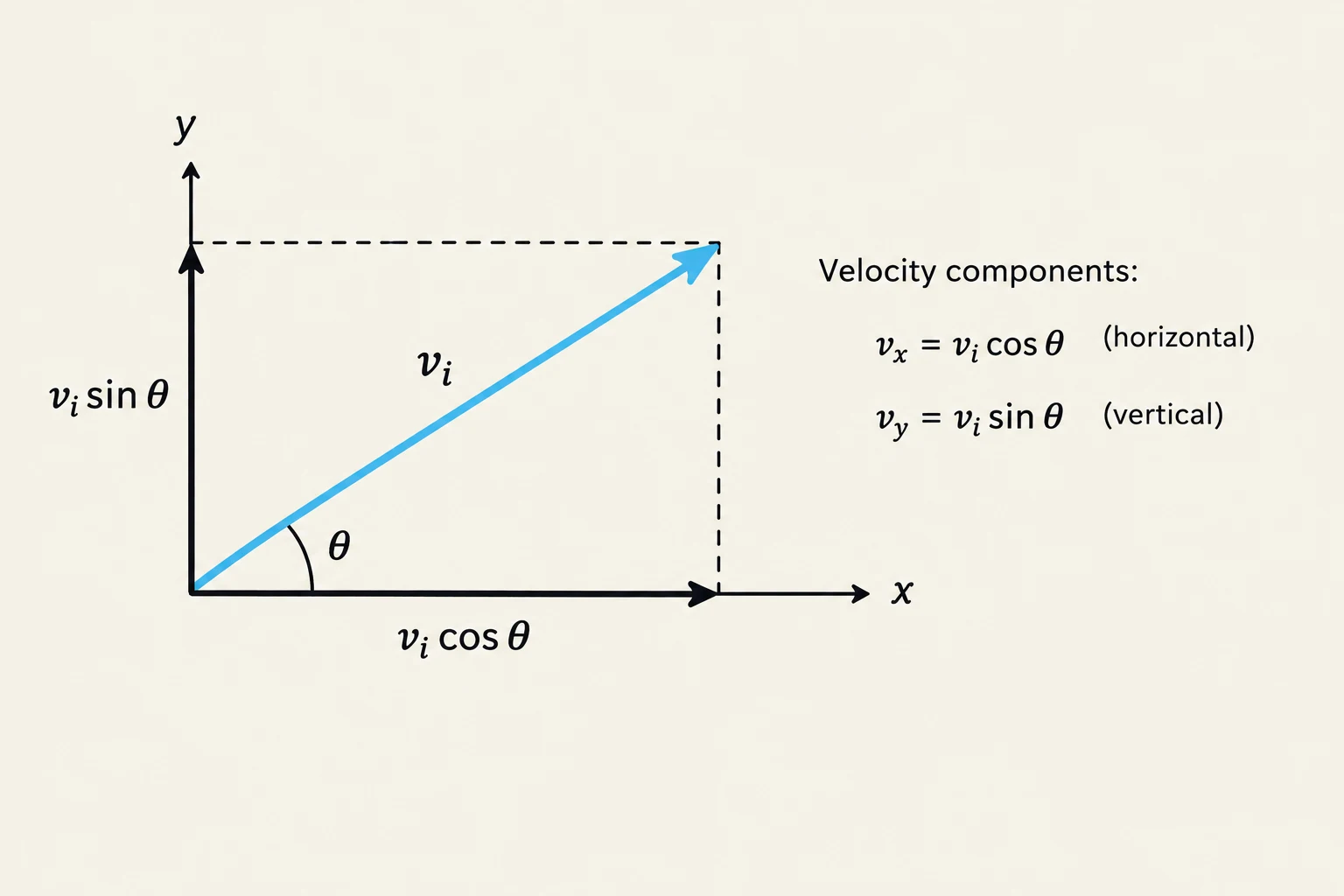

By combining the horizontal and vertical components, we can derive formulas for the most important characteristics of a projectile's flight.

Maximum Height ($h$)

The maximum height is reached at the exact moment the vertical component of velocity becomes zero ($v_y = 0$). By substituting the time to reach the peak into the vertical position equation, we derive: $h = \frac{v_i^2 \sin^2 \theta}{2g}$ Note that because the initial speed $v_i$ is squared, doubling the launch speed will actually quadruple the maximum height. Furthermore, the maximum possible height for any given speed is achieved at a launch angle of $90^\circ$, where the velocity is entirely vertical.

Time of Flight ($t_{\text{total}}$)

The time of flight is the total duration the object remains in the air. For a projectile launched from and returning to the same level, the motion is symmetric. We can find the time to reach the peak ($t = \frac{v_i \sin \theta}{g}$) and simply double it: $t_{\text{total}} = \frac{2v_i \sin \theta}{g}$ A $90^\circ$ launch angle provides the maximum time of flight because it maximizes the initial vertical velocity.

Range ($R$)

The range is the total horizontal distance traveled. Since horizontal velocity is constant, the range is simply the horizontal velocity multiplied by the total time of flight: $R = (v_i \cos \theta) \cdot t_{\text{total}}$ Using the trigonometric identity $\sin(2\theta) = 2 \sin \theta \cos \theta$, this simplifies to: $R = \frac{v_i^2 \sin(2\theta)}{g}$ The maximum range is achieved at a launch angle of $45^\circ$, because $\sin(2 \cdot 45^\circ) = \sin(90^\circ) = 1$, which is the maximum value for the sine function.

Complementary Angles and Range

An interesting property of projectile motion is the relationship between complementary angles (angles that sum to $90^\circ$). If you launch two projectiles with the same initial speed at angles $\theta$ and $(90^\circ - \theta)$, they will land at the exact same horizontal distance.

For example, a projectile launched at $30^\circ$ will have the same range as one launched at $60^\circ$. While their ranges are identical, their trajectories will look very different: the steeper angle will reach a much greater height and stay in the air longer, while the shallower angle will have a flatter, faster path.
