Understanding Measures of Spread and Frequency Distributions in Statistics

Range, Percentiles, and Quartiles

Other methods exist for measuring spread, particularly when dealing with different types of data distributions:

• Range: This is the simplest measure, calculated as the difference between the largest and smallest observations. While easy to compute, it is highly sensitive to extreme values (outliers) and can be difficult to compare across datasets of different sizes.
• Percentiles: The $p^{th}$ percentile is the value below which $p%$ of the data falls. For example, the 10th percentile is the value that marks the bottom 10% of the data.
• Quartiles: These are specific percentiles that divide the data into four equal parts:
  • 1st Quartile ($Q_1$): The 25th percentile.
  • 3rd Quartile ($Q_3$): The 75th percentile.
• Interquartile Range (IQR): The IQR is the difference between the upper and lower quartiles ($IQR = Q_3 - Q_1$). It describes the spread of the middle 50% of the data and is much more robust to outliers than the range.

Exam Tip: If a question asks for a measure of spread that is "robust" or "resistant" to outliers, look for the Interquartile Range (IQR). The Range and Standard Deviation are both heavily influenced by extreme values.

Natural Pairings of Location and Spread

In statistics, we rarely report a measure of spread in isolation. We almost always pair it with a measure of location (like the mean or median). The "correct" pairing depends entirely on the shape of your data distribution.

Symmetric vs. Skewed Data

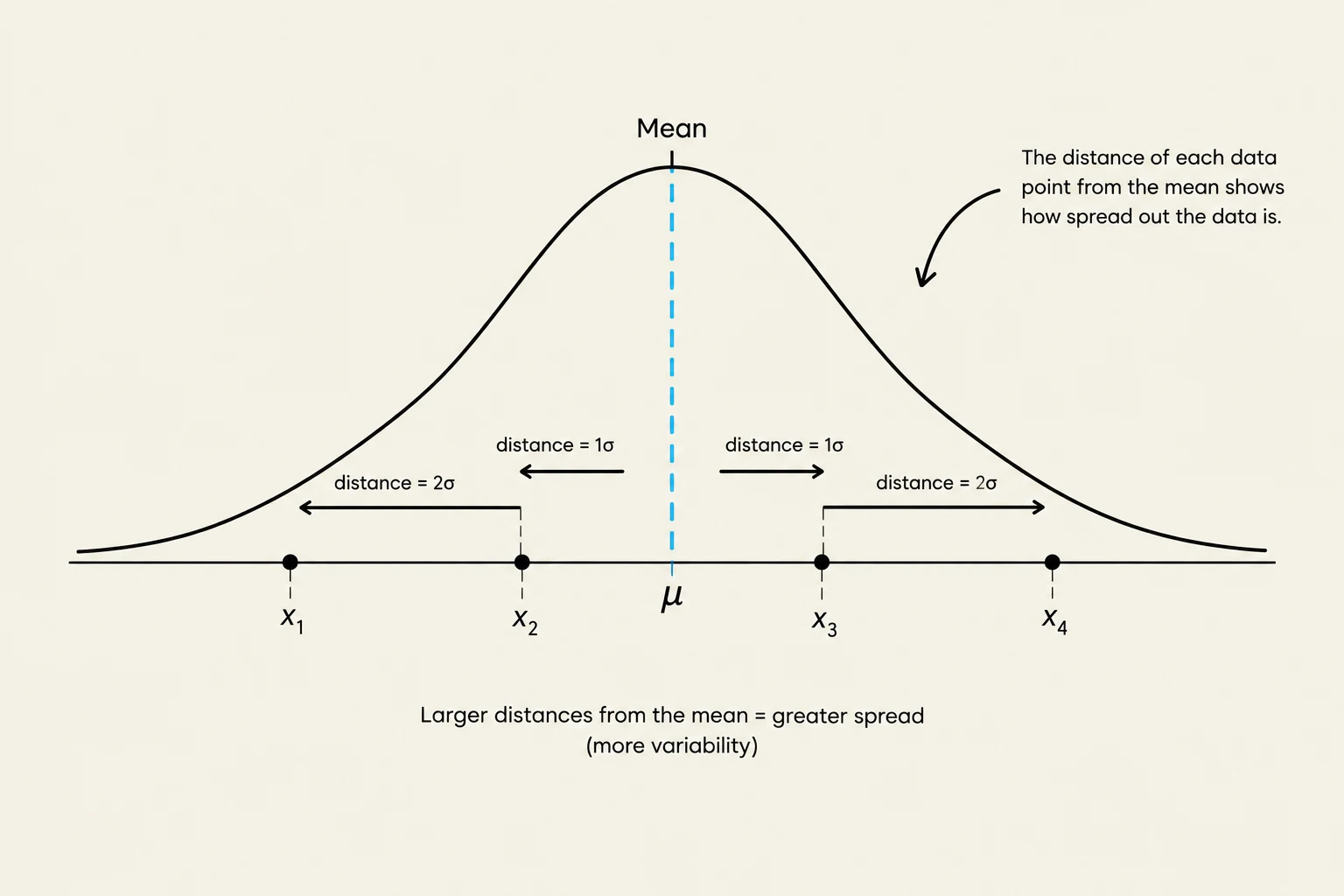

1. Symmetric (Unimodal) Data: When data is distributed evenly around a center, the Mean and Standard Deviation are the preferred pair. This is because the standard deviation is specifically designed to measure deviations from the mean.
2. Skewed (Unimodal) Data: When data is pulled to one side (positively or negatively skewed), the mean becomes unreliable because it is sensitive to those extreme values. In these cases, we pair the Median with the IQR. Both of these measures are based on the order of observations rather than their specific numerical values, making them resistant to the influence of skewness.
3. Multimodal Data: If a distribution has multiple peaks (bimodal or trimodal), a single measure of location and spread is often uninformative or even misleading, as it may fall in a gap between peaks where no data actually exists.

Frequency Distributions

When dealing with grouped data—often discrete or categorical data—we use frequency distributions to organize the information. A frequency distribution is an ordered display of values alongside their frequency (the number of times each value occurs).

To provide a deeper analysis, we often include several additional columns:

• Percent: The frequency expressed as a percentage of the total observations.
• Cumulative Frequency: The running total of the frequencies as you move through the ordered categories.
• Cumulative Percent: The running total of the percentages, which will always reach 100% at the final observation.

Visualizing Distributions

Frequency distributions are often visualized through specific graphic methods:

• Bar Graphs: Used for discrete or categorical data, where the height of the bar represents the frequency.
• Histograms: Used for continuous data to show the distribution of values across intervals.
• Box Plots: These are powerful tools that use the relationship between the median, $Q_1$, and $Q_3$ to describe skewness and the range of non-outlying values.

Warning: Always check the axes, labels, and scales of a graph. Poorly constructed graphics can be misleading, creating an impression that does not accurately represent the underlying data.
