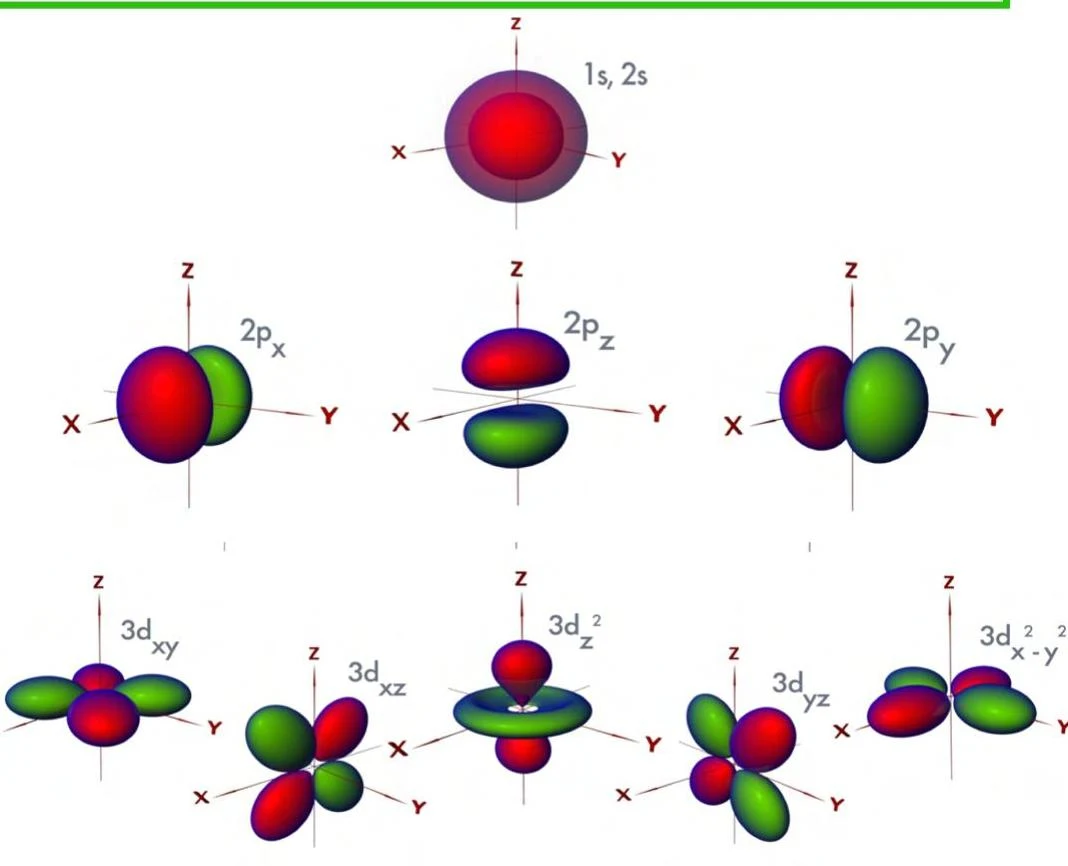

Understanding Atomic Orbitals: Wavefunctions, Shapes, and Nodes

The Radial Wavefunction and Radial Probability

While the angular wavefunction tells us the shape, the radial wavefunction, $R(r)$, tells us how the electron density changes as we move away from the nucleus (the distance $r$).

When we discuss where an electron is likely to be found, we often look at the radial probability distribution. This is not just the value of the radial wavefunction itself, but a measure of the probability of finding an electron at a certain distance from the nucleus.

Radial Nodes

Just as there are angular nodes, there are also radial nodes. A radial node is a specific distance from the nucleus where the probability of finding an electron drops to zero. Unlike angular nodes, which are planes or cones, radial nodes are spherical shells of zero probability.

The number of radial nodes can be calculated using the principal quantum number ($n$) and the angular momentum quantum number ($l$): $\text{Number of radial nodes} = n - l - 1$

For example, let's look at the $s$ orbitals:

• A 1s orbital ($n=1, l=0$) has $1 - 0 - 1 = 0$ radial nodes.
• A 2s orbital ($n=2, l=0$) has $2 - 0 - 1 = 1$ radial node.
• A 3s orbital ($n=3, l=0$) has $3 - 0 - 1 = 2$ radial nodes.

Exam Tip: When identifying orbitals from a radial probability plot, count the number of times the curve touches the x-axis (excluding the origin and infinity). Each touch represents a radial node.

Putting it Together: A Worked Example

Let's apply these concepts to identify orbitals and calculate nodes.

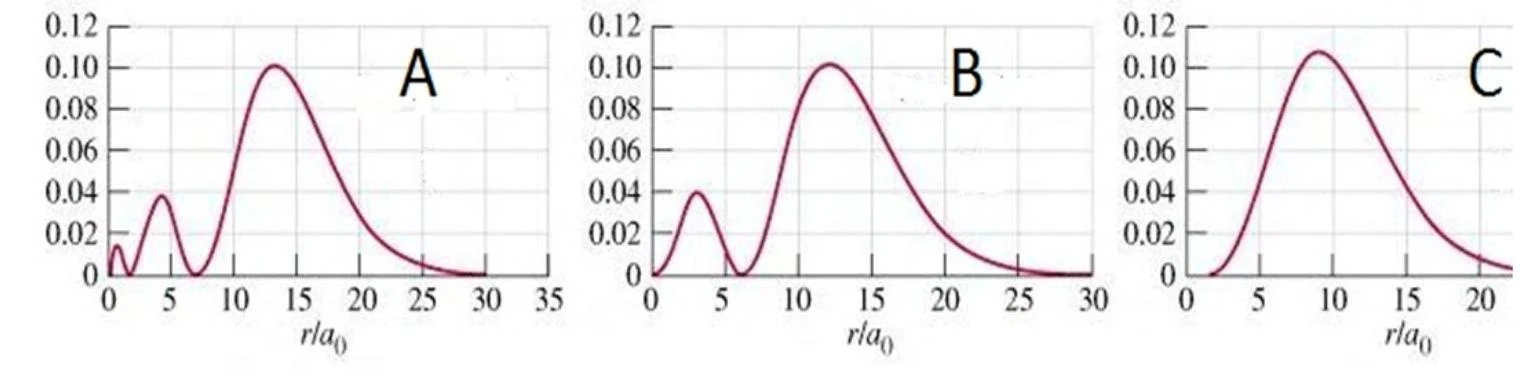

Example 1: Identifying Orbitals from Plots Suppose you are given three plots of radial probability vs. distance for the $n=3$ energy level:

• Plot A has 2 radial nodes.
• Plot B has 1 radial node.
• Plot C has 0 radial nodes.

Using our formula ($n - l - 1 = \text{nodes}$):

1. For Plot A: $3 - l - 1 = 2 \Rightarrow l = 0$. This is a 3s orbital.
2. For Plot B: $3 - l - 1 = 1 \Rightarrow l = 1$. This is a 3p orbital.
3. For Plot C: $3 - l - 1 = 0 \Rightarrow l = 2$. This is a 3d orbital.

Example 2: Calculating Nodes for Higher Orbitals How many radial nodes does a 4s orbital have? How about a 5d orbital?

• 4s orbital: $n=4, l=0$. $\text{Nodes} = 4 - 0 - 1 = 3$
• 5d orbital: $n=5, l=2$. $\text{Nodes} = 5 - 2 - 1 = 2$

By understanding the interplay between the principal quantum number, the angular momentum, and the resulting wavefunctions, we can mathematically describe the complex, three-dimensional "clouds" where electrons reside.
