Myocyte Microanatomy and Excitation-Contraction Coupling

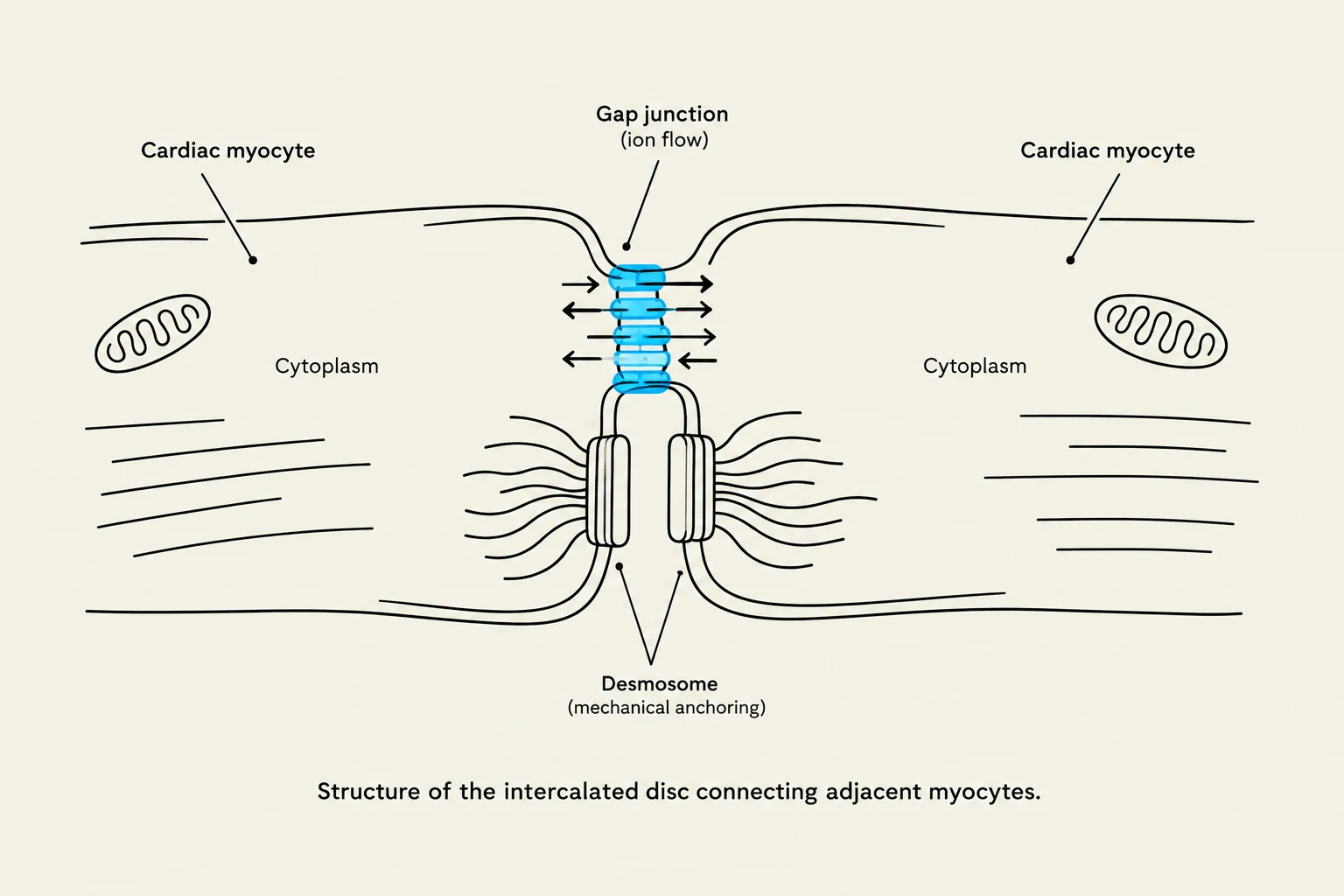

Intercalated discs contain two vital types of junctions:

1. Gap Junctions: These are protein channels that allow ions to flow directly from one cell to another. This electrical coupling allows the action potential to spread rapidly across the entire myocardium.
2. Desmosomes: These act like "mechanical glue," anchoring the cells together so that they do not pull apart during the intense physical stress of contraction.

Exam Tip: If a question asks how the heart achieves a synchronized contraction, look for "gap junctions" (electrical coupling) and "T-tubules" (internal signal distribution) in your answer.

Excitation-Contraction Coupling (ECC)

Excitation-Contraction Coupling is the physiological process that links the electrical stimulus (the action potential) to the mechanical response (muscle shortening). This process is almost entirely mediated by the movement of calcium ions ($Ca^{2+}$).

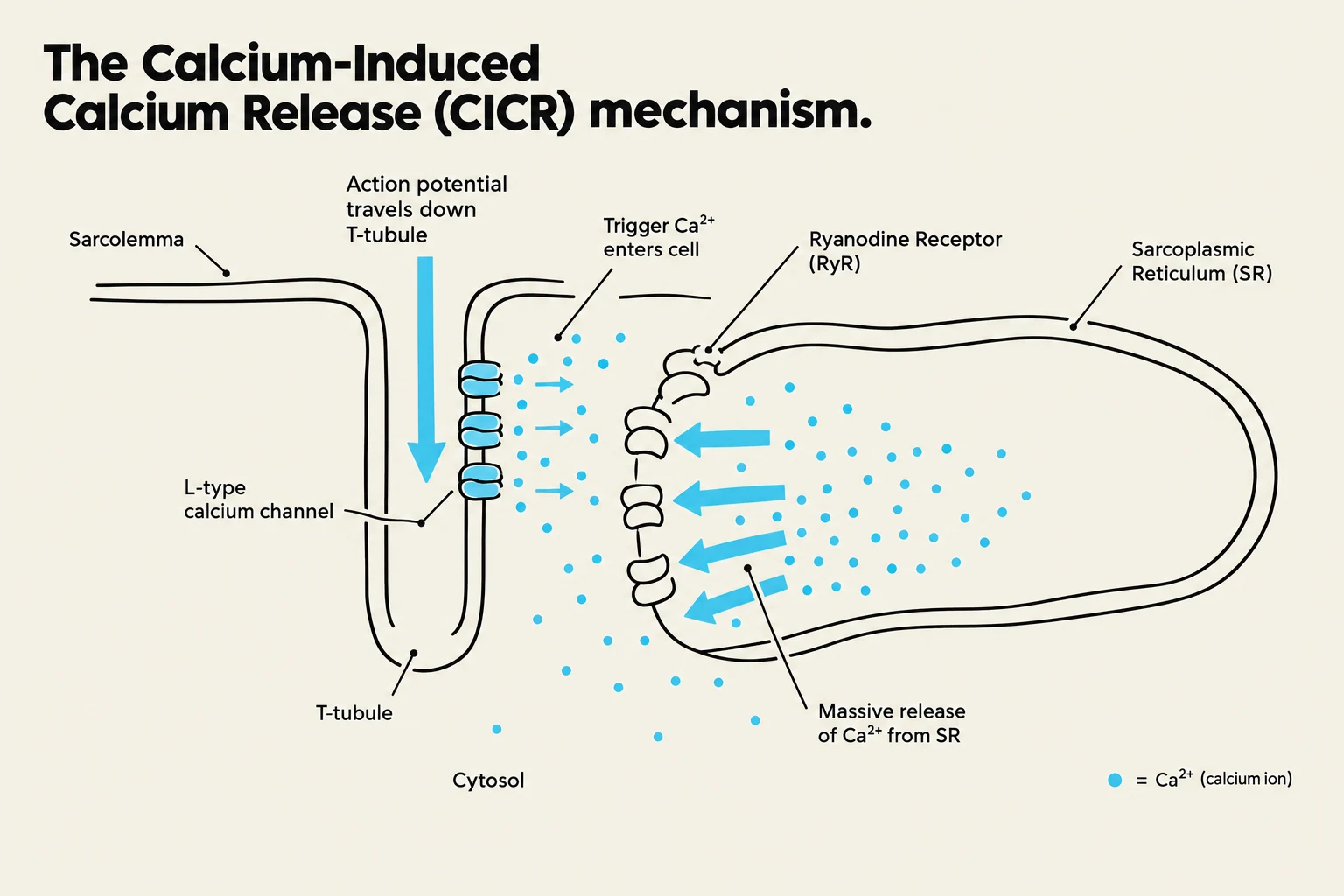

The Calcium-Induced Calcium Release (CICR) Mechanism

The hallmark of cardiac ECC is a process called Calcium-Induced Calcium Release (CICR). The sequence follows these specific steps:

1. Depolarization: An action potential travels along the sarcolemma and down into the T-tubules.
2. L-type Calcium Channel Activation: The depolarization activates voltage-gated L-type calcium channels (also known as dihydropyridine receptors) located in the T-tubule membrane.
3. Trigger Calcium Entry: A small amount of extracellular $Ca^{2+}$ enters the cell through these L-type channels.
4. Ryanodine Receptor Activation: This "trigger" calcium enters the space near the Sarcoplasmic Reticulum (SR)—the cell's internal calcium storage tank. The trigger calcium binds to Ryanodine Receptors (RyR) on the SR membrane.
5. Calcium Flood: The activation of RyR causes a massive release of $Ca^{2+}$ from the SR into the cytosol.

The Contractile Machinery

Once the cytosolic $Ca^{2+}$ concentration rises, the calcium binds to a protein called Troponin C on the thin filaments of the sarcomere. This binding causes a conformational change in the tropomyosin complex, moving it away from the binding sites on the actin filament. This allows the myosin heads to attach to actin, forming cross-bridges and initiating the "power stroke" that shortens the muscle fiber.

Relaxation and Calcium Removal

For the heart to fill with blood again, the muscle must relax. Relaxation is not a passive event; it requires the active removal of $Ca^{2+}$ from the cytosol to drop the concentration back to resting levels.

There are two primary mechanisms for this:

• SERCA Pump: The Sarcoplasmic Reticulum $Ca^{2+}$-ATPase (SERCA) pump actively transports $Ca^{2+}$ back into the SR.
• NCX Exchanger: The Sodium-Calcium Exchanger (NCX) moves $Ca^{2+}$ out of the cell in exchange for $Na^{+}$ entering the cell.

Failure of these calcium removal mechanisms can lead to diastolic dysfunction, where the heart muscle cannot relax sufficiently to allow for adequate filling.

Summary Table: Key Components of ECC
