Medical Imaging Modalities and ROC Analysis

Exam Tip: Remember that improving one factor (like resolution) does not automatically improve others (like SNR). They must work together to produce a diagnostically useful image.

Signal Propagation and Attenuation

Imaging modalities use different forms of energy, often described by their position on the electromagnetic spectrum. These waves are characterized by their wavelength ($\lambda$) and frequency ($f$). In the case of ultrasound, we deal with mechanical pressure waves rather than electromagnetic waves.

The Concept of Attenuation

As a signal travels through a medium (like human tissue), it loses strength. This total propagation loss is called attenuation. Attenuation is caused by four primary interactions:

• Absorption: The energy is taken up by the tissue and converted into heat.
• Reflection: The signal hits a boundary and some energy returns toward the source.
• Refraction: The wave changes direction when entering a medium with a different propagation velocity.
• Scattering: The signal is dispersed in different directions.

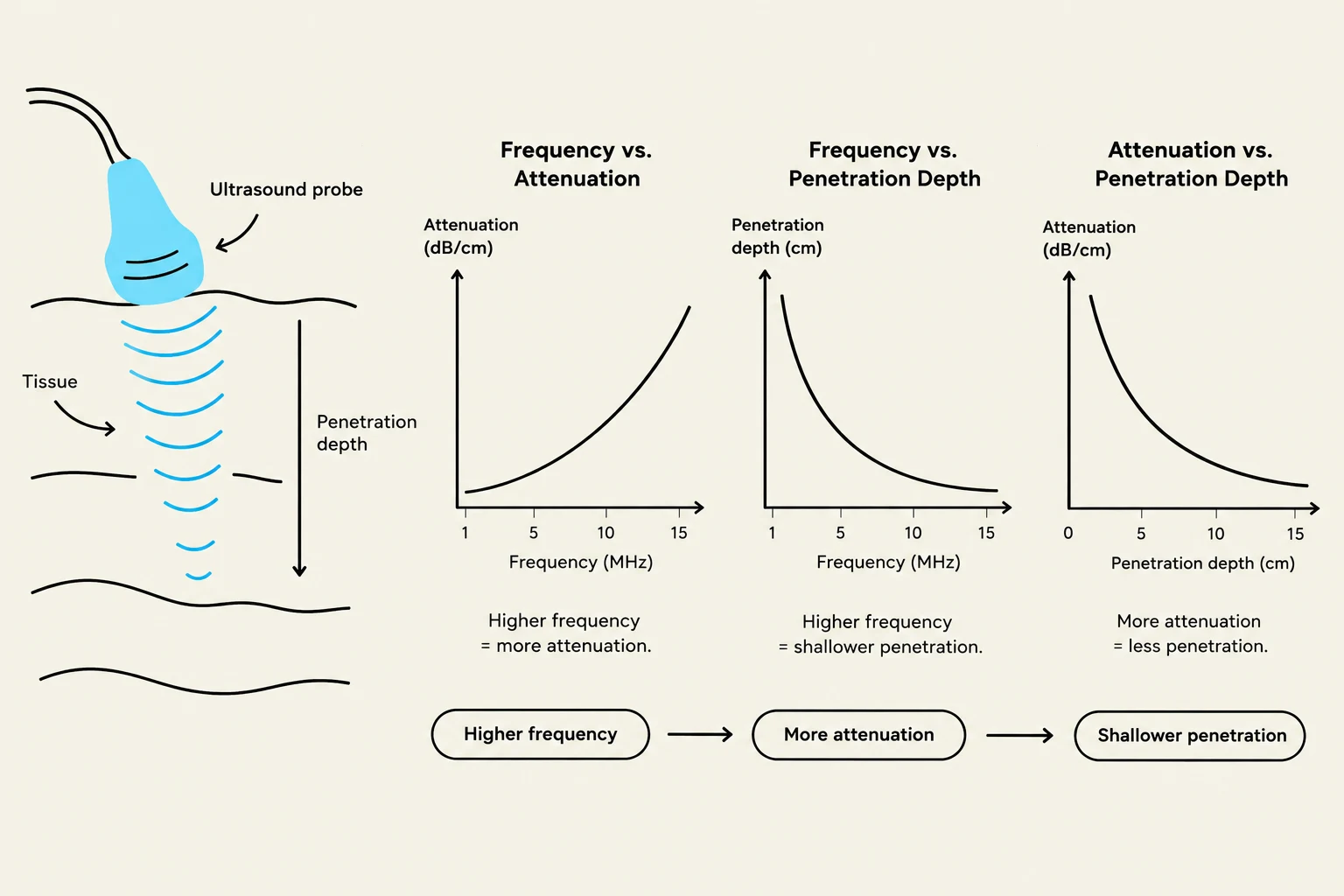

In ultrasound, attenuation is highly dependent on frequency. High-frequency waves provide better resolution but suffer from high attenuation (low penetration), whereas low-frequency waves provide better penetration but lower resolution.

Evaluating Accuracy: ROC Analysis

Once an image is captured, we must evaluate how well the diagnostic test or imaging system distinguishes between healthy and diseased states. This is done using Receiver Operating Characteristic (ROC) analysis.

The Four Outcomes

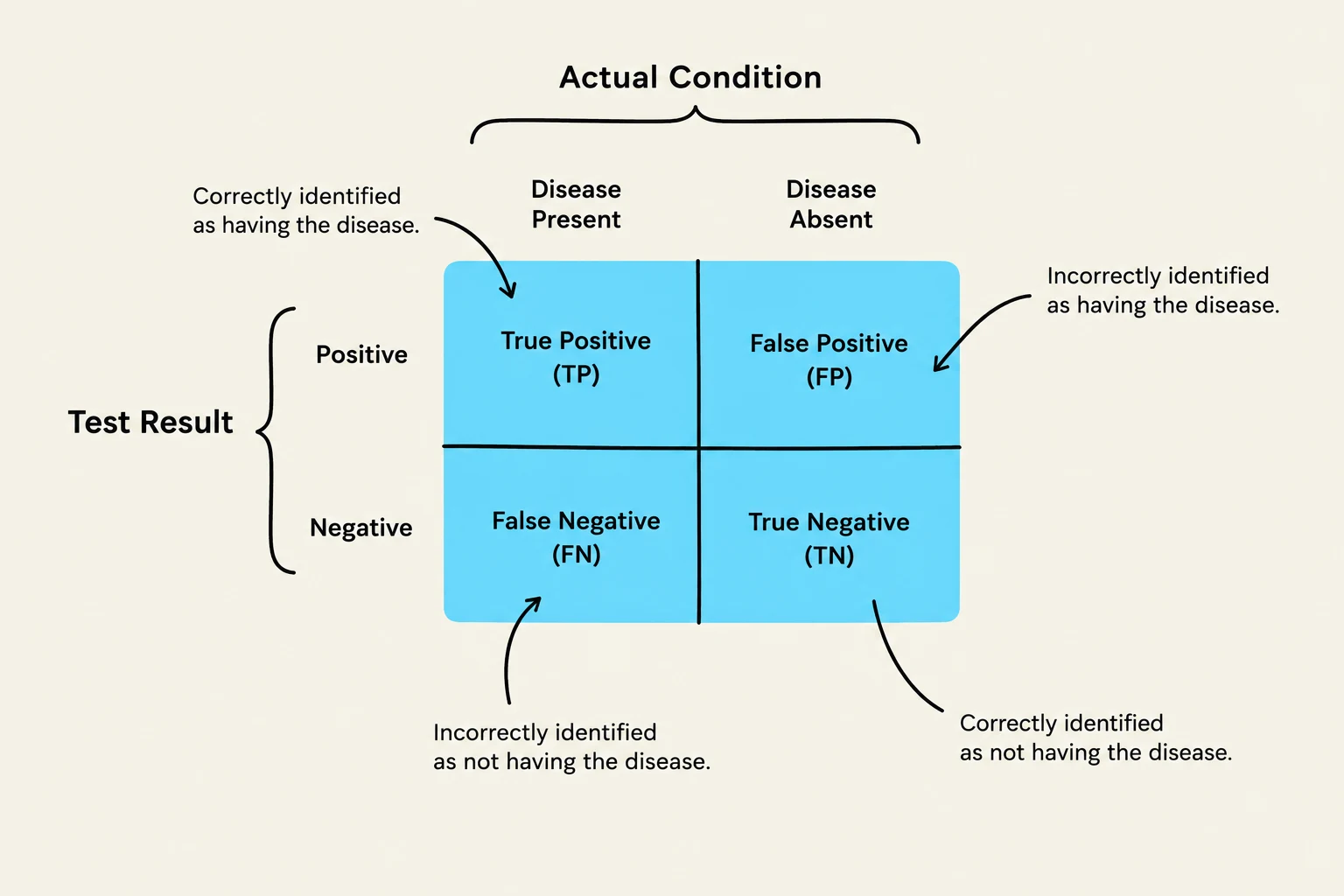

To perform this analysis, we categorize every test result into one of four outcomes:

• True Positive (TP): The condition is present, and the test correctly identifies it.
• False Positive (FP): The condition is absent, but the test incorrectly indicates it is present.
• True Negative (TN): The condition is absent, and the test correctly identifies it.
• False Negative (FN): The condition is present, but the test incorrectly indicates it is absent.

Key Performance Metrics

We quantify the performance of a modality using three mathematical metrics:

1. Accuracy The proportion of total correct diagnoses (both true positives and true negatives): $\text{Accuracy} = \frac{\text{Correct diagnoses}}{\text{Total diagnoses}} \times 100\%$

2. Sensitivity The ability of a test to correctly identify those who actually have the condition. High sensitivity is crucial for minimizing False Negatives: $\text{Sensitivity} = \frac{TP}{TP + FN} \times 100\%$

3. Specificity The ability of a test to correctly identify those who do not have the condition. High specificity is crucial for minimizing False Positives: $\text{Specificity} = \frac{TN}{TN + FP} \times 100\%$

Clinical Note: In many medical contexts, a False Negative is considered more dangerous than a False Positive. A false positive (e.g., a suspicious mammogram) usually leads to more testing, whereas a false negative (e.g., missing a cancer diagnosis) can lead to untreated, life-threatening illness.

Clinical Application and Decision Making

ROC analysis is not just a theoretical exercise; it guides real-world clinical and economic decisions. For example, a hospital with a limited budget must decide whether to invest in an MRI, a CT scanner, or nuclear medicine equipment based on the specific patient populations they serve and the required diagnostic accuracy for those populations.

Similarly, the choice of modality depends on the specific goal. Ultrasound is often selected for pregnancy imaging because it provides useful diagnostic information without the use of ionizing radiation. By understanding the trade-offs between resolution, attenuation, and statistical accuracy, clinicians can select the most effective tool for the patient's needs.
