Fire Alarm and Signaling Systems: An Overview

Evolution of Detection Technology

Fire alarm technology has transitioned from simple manual tools to sophisticated, microprocessor-based systems. Modern Fire Alarm Control Units (FACUs) manage a variety of detection methods:

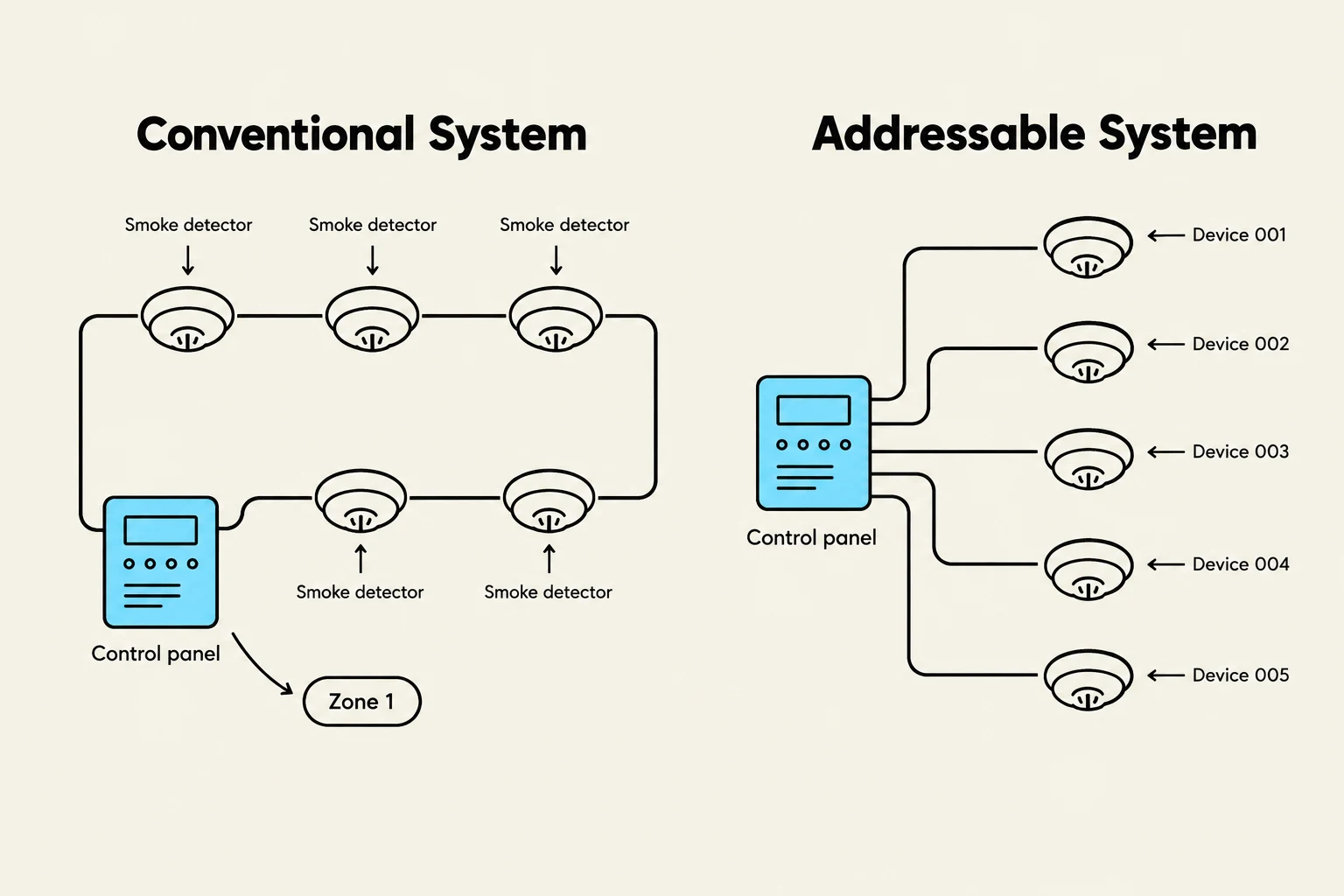

• Conventional vs. Addressable Systems: While conventional systems monitor zones, addressable systems can identify the exact location of a specific initiating device, allowing for much faster response times.
• Smoke and Heat Detection: Systems utilize various sensors to detect combustion byproducts or temperature spikes.

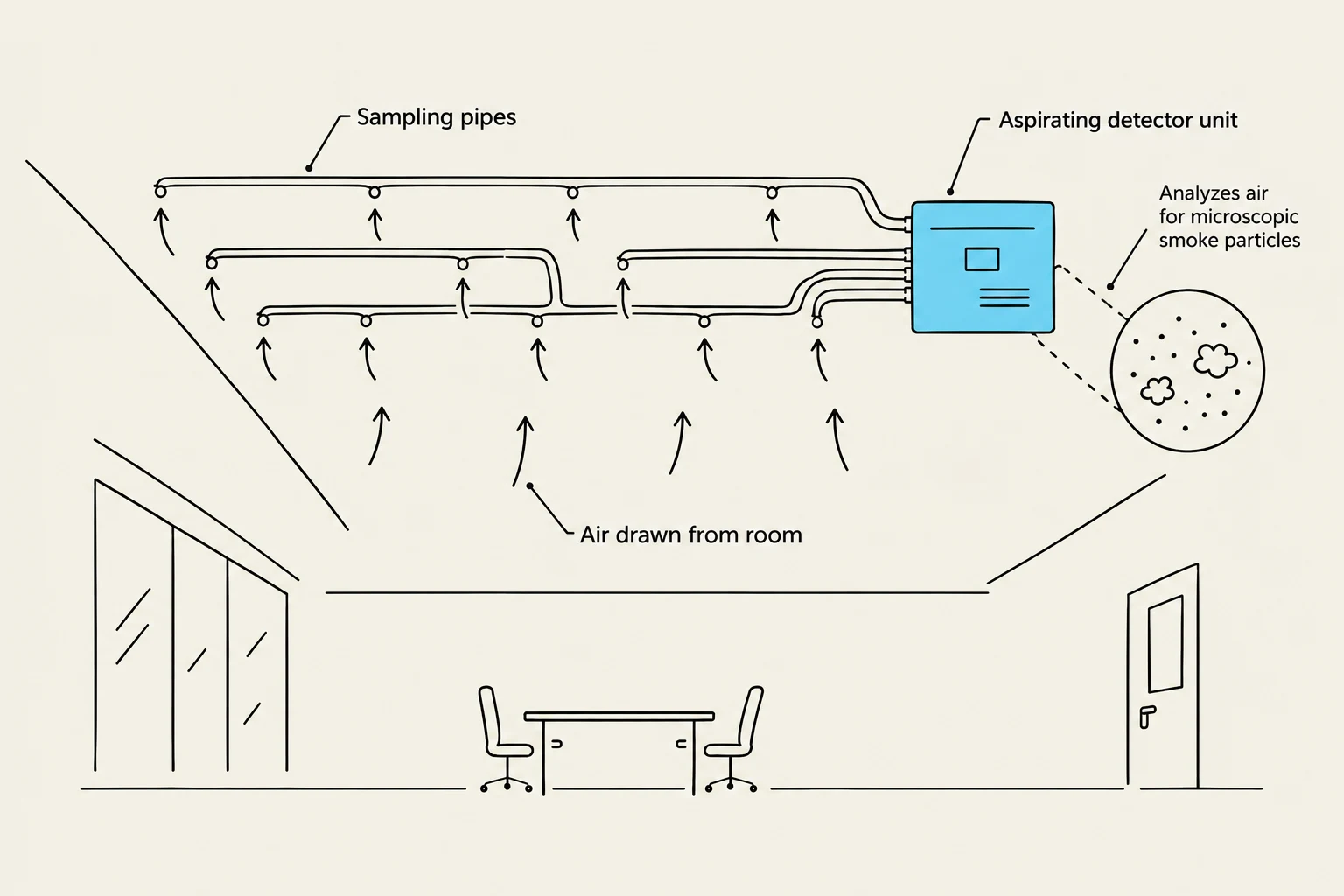

• Advanced Sensing: To reduce "nuisance alarms" (false alarms), multi-criteria detectors combine sensors for smoke, heat, and $CO$. For large, open spaces, projected beam smoke detection or video smoke and flame detection may be used. In high-sensitivity environments, air-sampling smoke detectors (such as VESDA) pull air through a network of pipes to detect microscopic particles.

System Classifications

Fire alarm systems are categorized based on how they communicate and where they are installed:

Local and Emergency Communication

Protected Premises Systems are installed in commercial buildings to manage local safety functions, such as elevator recall or HVAC shutdown, without necessarily transmitting signals outside the building. For more complex needs, Emergency Communications Systems (ECS) include In-Building Fire Emergency Voice/Alarm Communications Systems (EVACS) and Mass Notification Systems (MNS), which provide live or recorded voice instructions to occupants.

Supervising Station Systems

These systems provide 24-hour monitoring and are divided into three types:

• Central Station: The most restrictive type, typically involving a contract with a professional monitoring company.
• Remote Station: Common in many jurisdictions, these often communicate directly with 9-1-1 dispatch centers.
• Proprietary Station: A system owned and monitored by a single large entity (such as a university campus or large industrial complex).

Other Categories

Other specialized systems include Public Emergency Alarm Reporting Systems (PEARS), which use street boxes to communicate with public dispatchers, and Single- or Multiple-Station Alarms, which are stand-alone units designed strictly for life-safety in residential dwellings.

Critical Note on Reliability Although many modern fire alarm designs include built-in redundancy, improper field installations can render these safeguards useless. Reliability is not just a design feature; it is a requirement of proper installation.

Standards and Compliance

To ensure these systems function when needed most, they must adhere to strict regulatory codes. In the United States, two primary standards govern these systems:

• NFPA 72 (National Fire Alarm and Signaling Code): Governs the installation, performance, and maintenance of the alarm systems themselves.
• NFPA 70 (National Electrical Code/NEC): Governs the electrical wiring and requirements for the system.
